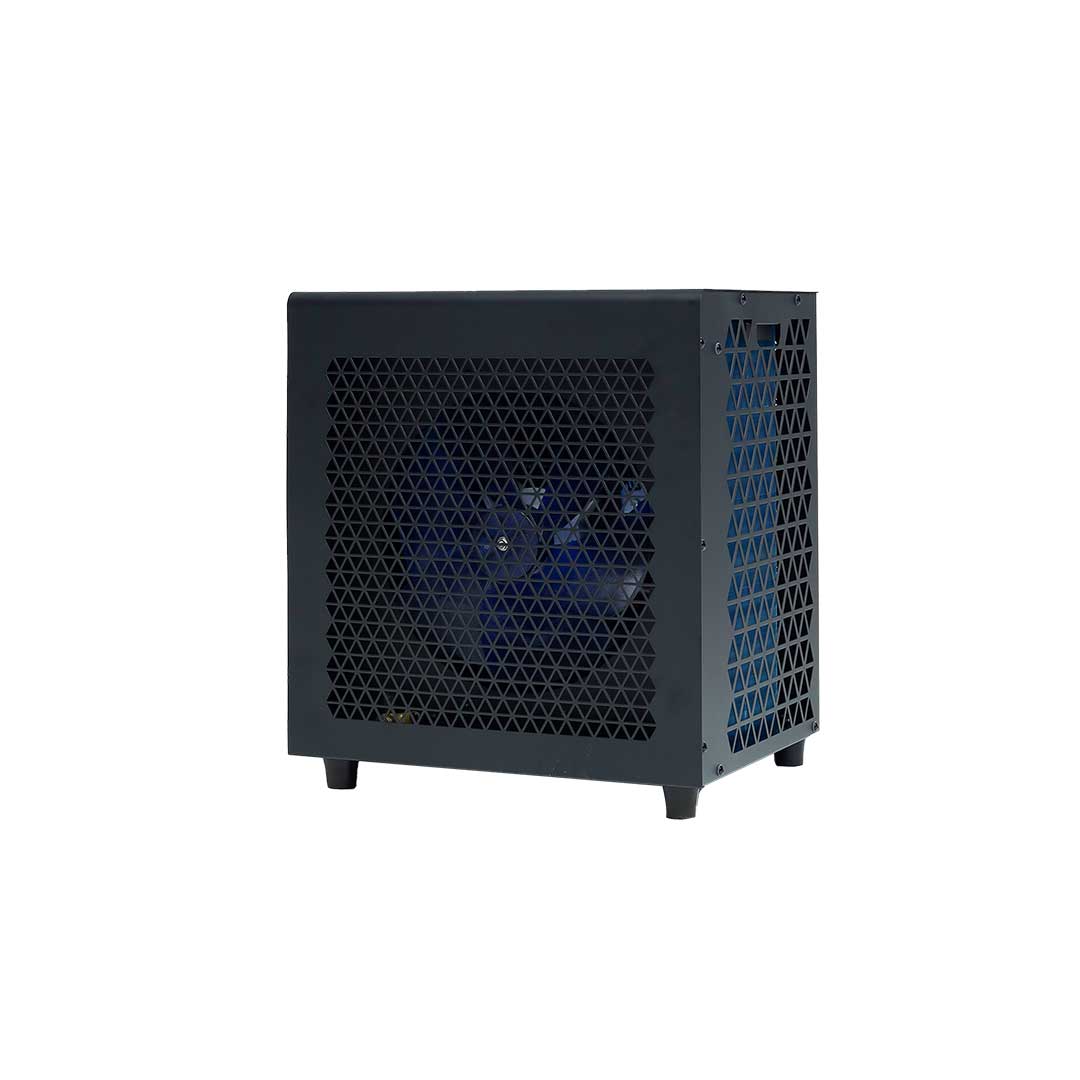

Heat Pump – Venturo V03

Model : V03
Heating Capacity : 3.8 ~ 2.65 kW
COP : 5.21 ~ 6.97
Power Supply : 230 V / 1 Ph / 50 Hz
Rated Water Temperature : 30°C
Rated Power : 0.73 ~ 0.38 kW
Max. Current : 5.6 A
Noise Level : 46 dB(A)
Working Ambient Temperature : -15°C ~ 43°C
Power Input : 1.28 kW
Refrigerant : R32 / 675 g
Heat Exchanger : Titanium
Flow Direction : Horizontal
Horizontal Dimension : 420 × 360 × 490 mm
Packing : 475 × 430 × 510 mm
Net Weight : 29 kg
Gross Weight : 32 kg
Water Flow Volume : 1.56 m³/h
Water Connection : 1½ inch
